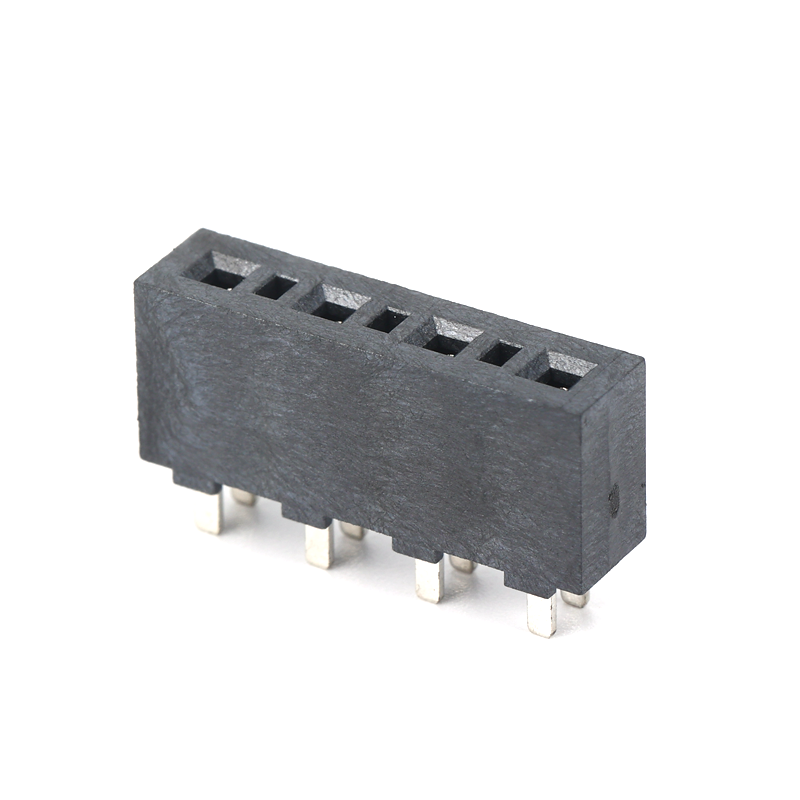

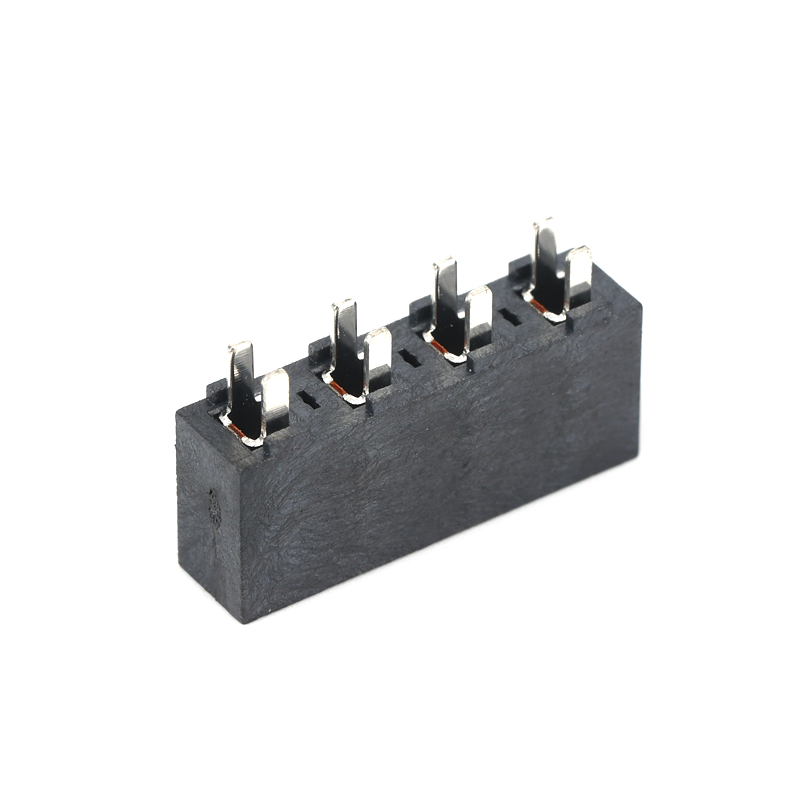

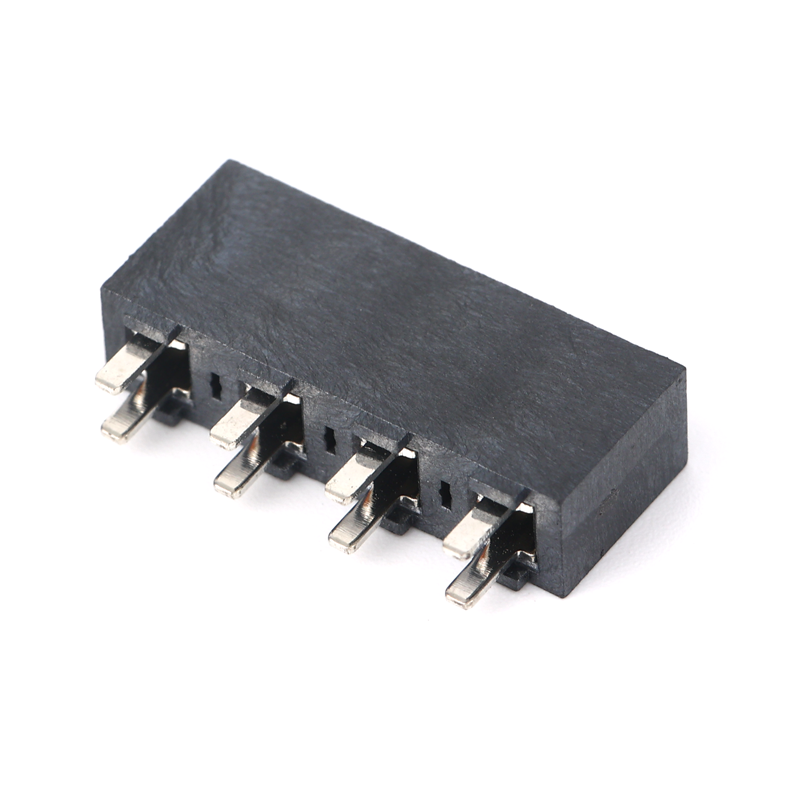

5.08 mm de una sola fila H8.8 180 grados
Obtener el último precioCantidad de pedido mínima: | 1 |
Modelo: 060352
The file is encrypted. Please fill in the following information to continue accessing it
Attributes | Details |
Application | Mainly used inside equipment, not for external device connectors. Suitable for electronics products, industrial computers, communication systems, after-sales parts, etc. |
Welding Types | SMT / Straight / Right Angle / J - type / U - type |
Plastic Rows | Single row, Double row |
Rated Current | 5A per pin |
Operating Temperature | -40°C to +105°C |
Terminal Materials | C2680; C5191 |
Insulator Material | LCP (UL94V - 0), Black |
Processing Temperature Range | 230°C to 260°C |
Contact Resistance | Maximum 20mΩ |
Contact Plating | Tin plating: 80 - 120u"; Welding area tin plating: 80 - 120u"; Bottom plate nickel layer: ≥50u" |
Number of Contacts | 6 - 25 PIN |
Certifications | IATF16949, ISO9001, ISO14000 |
RoHS Compliance | Yes |
Materials | PA6T, PA9T, LCP |
Packaging Details | Standard packaging is plastic tray + carton. Customization is available upon request. |
Service Types | ODM and OEM services are provided. Colors can be customized flexibly. |
